Roofline
Roofline products finish and protect the edge of the roof where it meets the walls of the building. These components support the guttering system while helping protect the roof structure from moisture, weather exposure and pests.

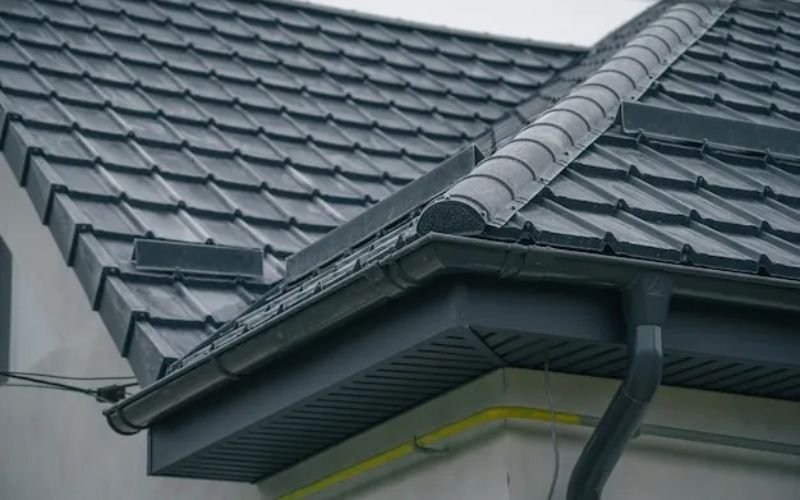

A typical roofline installation includes fascia boards, soffit boards and finishing trims. Fascias run along the roof edge and support the guttering, while soffits close the underside of the roof overhang and allow ventilation into the roof space.
Discover Our Full Product Range:
| Product Type | Product | Sizes / Variants Available |
| Fascia Boards | PVC Fascia Boards | Widths 150mm – 405mm, length 5m |
| Soffit Boards | Flat Soffit Boards | Widths 150mm – 300mm, length 5m |
| Soffit Boards | Vented Soffit Boards | Widths 175mm – 300mm, length 5m |
| Soffit Boards | Hollow Soffit Boards | 300mm boards, length 5m |
| Trim & Finishing Profiles | Architraves & Mouldings | 45mm, 65mm and 95mm architraves, decorative trims |
| Trim & Finishing Profiles | Quadrant & Angle Trims | 12mm and 19mm quadrant, 25mm–50mm rigid angle trims |
| Joining & Starter Profiles | H Sections & Starter Trims | 5m H section profiles and 5m J starter trims |
| Fascia Corners & Joints | Fascia Corners & Joiners | 300mm and 600mm fascia joints, internal and external corners |
| Fixings & Pins | Poly Pins & Poly Nails | 30mm, 40mm and 50mm fixing pins, colours black or white |
| Ventilation Components | Soffit Vent Strips | 2.4m vent strips, colours black or white |
How Roofline Components Work Together
The roofline forms the finishing edge of the roof and provides a fixing point for guttering.
Fascia boards run along the roof edge and support the gutter brackets.
Soffit boards close the underside of the roof overhang and often include ventilation openings.
Trim profiles and mouldings are used to join boards together and create a clean finish.
Ventilation strips help air circulate into the roof space to reduce condensation.
Together these components protect the roof structure while giving the roof edge a clean, finished appearance.
FAQ’s:
Can roofline boards be installed over existing timber?
Yes, many PVC fascia and soffit boards are installed over existing timber structures during refurbishment work, provided the underlying timber is still sound.
Why are soffit vents installed?
Soffit vents allow airflow into the roof space. This helps reduce condensation build-up and supports ventilation within the roof structure.
Do fascia boards carry the guttering weight?
Yes. Fascia boards provide the fixing point for gutter brackets, so they must be securely installed to support the gutter system.
Can individual roofline sections be replaced?
In many cases, individual fascia boards, soffit panels or trims can be replaced without removing the entire roofline system.
